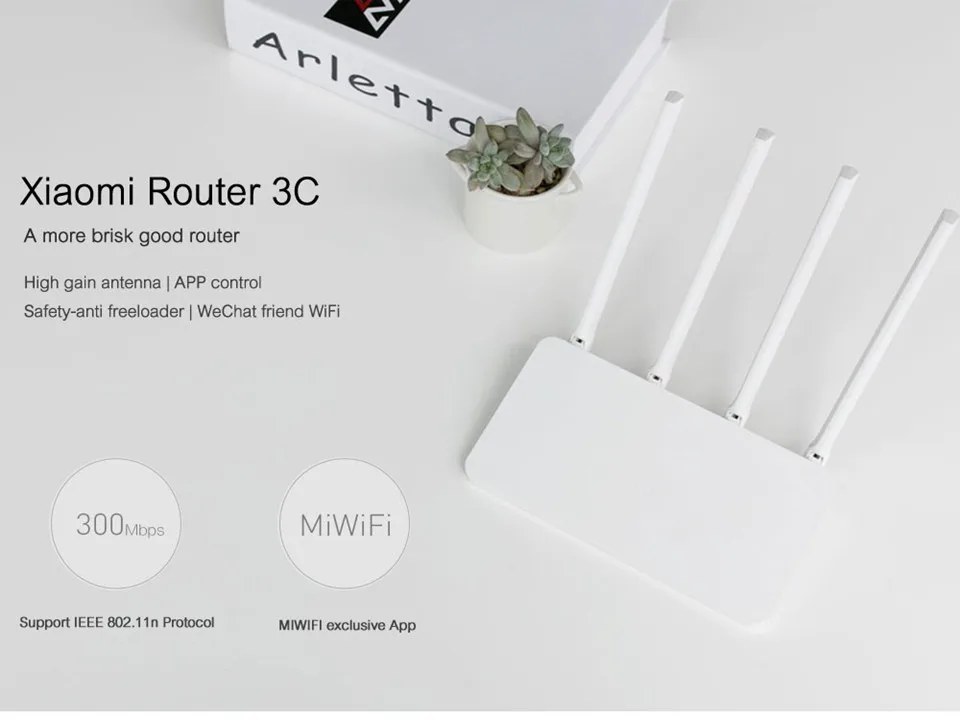

Original Xiaomi Mi WiFi Router 3C 300Mbps Wi-Fi Repeater 2.4G 64 RAM 802.11N APP Control with 4 Antennas Wireless Router Xiaomi

Original Xiaomi Mi WiFi Router 3C 300Mbps Wi-Fi Repeater 2.4G 64 RAM 802.11N APP Control with 4 Antennas Wireless Router Xiaomi

Product ID : 32899961753

Price : $35.61 - 37.88

Discount Price : $30.27 - 32.20

Item specifics

Supports WDS:
Yes

Standards And Protocols:
Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11g

With Modem Function:
No

Max. LAN Data Rate:
300Mbps

Brand Name:
xiaomi

Function:
VPN

LAN Ports:
2

Number of USB Interfaces:
None

Model Number:
xiaomi 3c

Wired Transfer Rate:
150 Mbps

5G Wi-Fi Transmission Rate:
None

XiaoMi Model:
Millet router 3c

Type:
Wireless

Package:
Yes

Application:
Soho

Supports WPS:
Yes

Wi-Fi Transmission Standard:
802.11g

Wi-Fi Supported Frequency:
2.4G

2.4G Wi-Fi Transmission Rate:
300 Mbps

WAN Ports:
other

Product Description

Note：The original xiaomi charger is the US plug ，System language，the management page is the （English OR Chinese）, If you do not contact us, we will send it randomly.

Please select the server in your area in the settings, please see the figure below

Brand: Xiaomi

Model: 3C

Type: Border Router

Processor: MT7628N

ROM: 16MB NorFlash

Memory: 64MB DDR2

Router Connectivity Type: Ethernet,Wireless

Transmission Rate: 300Mbps

Speed of Ethernet Port: 100Mbps

Network Protocols: IEEE 802.11b,IEEE 802.11n

Wireless Standard: Wireless N

Wireless Security: WPA-PSK,WPA2-PSK

WiFi Distance : 100m

Supports System: Android 2.x,Android 4.x.,IOS,Linux,MAC OS X,Win 2000,Win 2008,Win vista,Win XP,Win7 32,Win7 64,Win8 32,Win8 64

LAN Ports: 2 ports

Max. LAN Data Rate: 300Mbps

Hardware Configuration

Processor MT7628N

ROM16MB NorFlash

Memory 64MB DDR2

2.4G WiFi2X2 (supports IEEE 802.11n protocol, the maximum rate can reach 300Mbps)

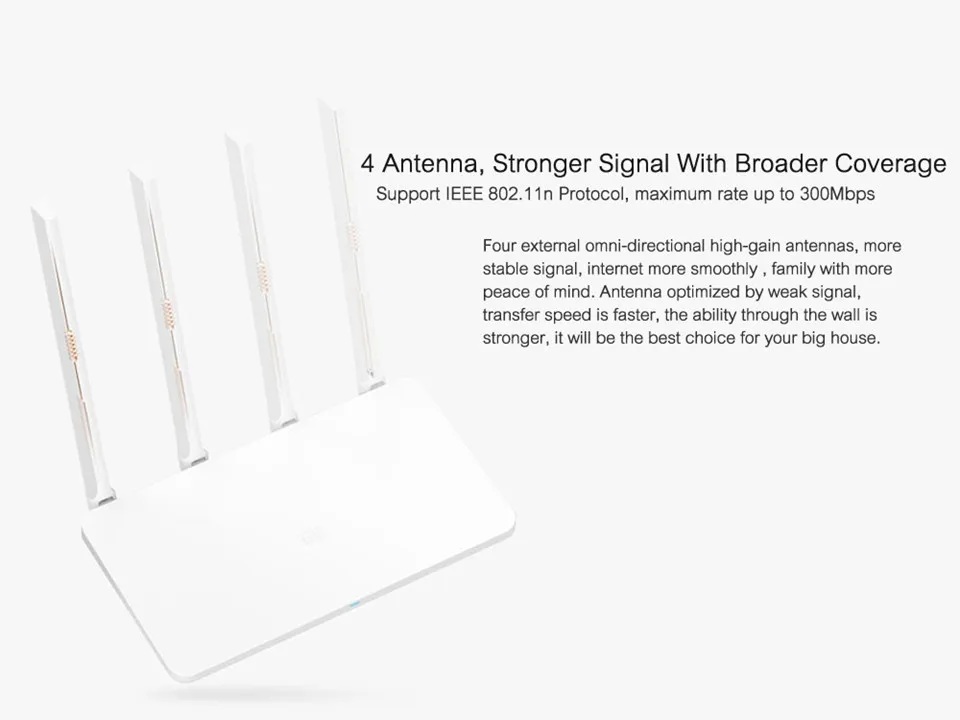

Antenna external omnidirectional high gain antenna 4

Cooling system naturally dissipates

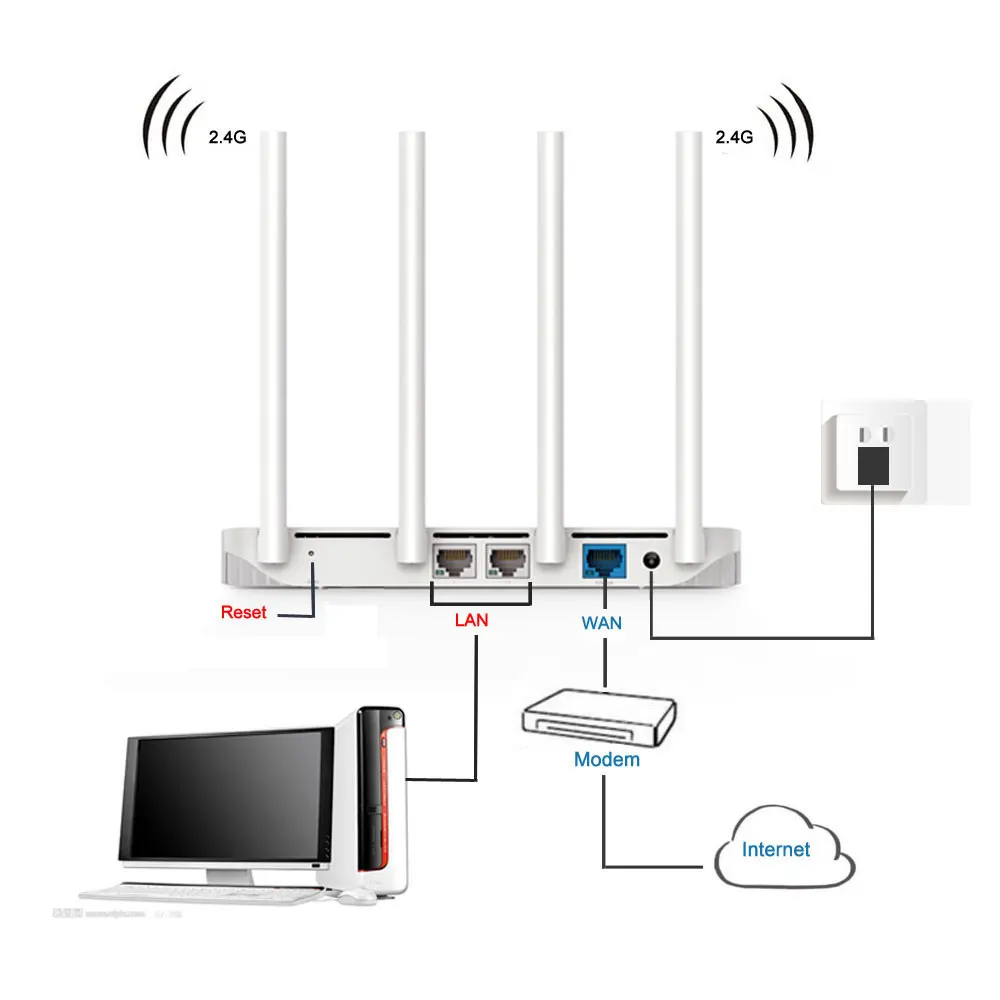

Machine interface

2 10/100M adaptive LAN ports (Auto MDI/MDIX)

1 10/100M adaptive WAN port (Auto MDI/MDIX)

1 red/blue/yellow three-color LED indicator

1 system restore factory settings button

1 power input interface

Wireless parameter

2.4GHz single frequency

Wireless channel 2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13

Modulation mode 11b: DSSS: DBPSK (1 Mbps), DQPSK (2 Mbps),

CCK (5.5/11Mbps)

11g: OFDM: BPSK (6/9Mbps),

QPSK (12/18Mbps), 16QAM (24/36Mbps),

64QAM (48/54Mbps)

11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM

Receive sensitivity 11Mbps: ≤-90dBm, 54 Mbps: ≤-72dBm,

HT20 MCS7: ≤-69dBm,

HT40 MCS7: ≤-66dBm

Software parameter

The operating system is based on OpenWRT deep customization intelligent router operating system MiWiFi ROM

Support Language Simplified Chinese

Wireless security WPA-PSK/WPA-PSK2 encryption, wireless access control (black and white list), SSID hiding, intelligent flood prevention network, wireless intrusion detection, password brute force detection, management background access control, access ssid isolation

Management applications support Web, Android, iOS (new management methods are not regularly expanded)
